…consisting of lithographs, lino cuts, a simple woodblock print, aquatint, but in the majority dry point ( -etchings, -engravings ), mostly executed on transparent acetate or recycled offset aluminium plate.

new-059 new-046 copper-3 new-037 copper-1

I insert here also the contents of an explanatory leaflet on prints a lot of visitors to my print exhibition found helpful:

Etchings ?                                                                                                                                                                                                                         Until very recently I took it for granted, that the term Etching was part of the wider vocabulary of the majority of people but realised I was causing uncertainty and confusion when referring to my Original Prints, which in turn puzzled me, because of my underlying assumption.

Pondering why some people even showed signs of suspicion I came to understand their view of it, namely that I was trying to make reproductions of my work (the whole process digitalised now a days) go down as originals, by putting an obscure smart slant on it.

new-042 new-040 new-047 copper-2 new-041

The Original work in Etching is not much to look at because it is the actual printing plate on which all the work creating the given image takes place. To make it properly visible it has to be printed – an “old fashioned” manual process throughout. No sign of computer keys and digital shortcuts.

Working ink into the plate is the first step, followed by wiping surplus ink off with a cloth, the heel of your hand or both, and mostly cleaning the plate’s edges to get rid of your own fingerprints and whatever smudges.                                                                                                                                                                                                                                                                                                                                                                                  After placing the readied plate with one of the sheets of paper – dampened before in preparation – appropriately on the printing press, it is then manually driven between two rollers which apply the necessary and quite substantial pressure to transfer the ink from the plate onto the paper.  Only then can you really see in detail what you created.

The more time you spend at it, the more predictable it becomes – but never quite.  For each individual print – they are never exactly the same even if attempted – the process starting with inking up has to be repeated.

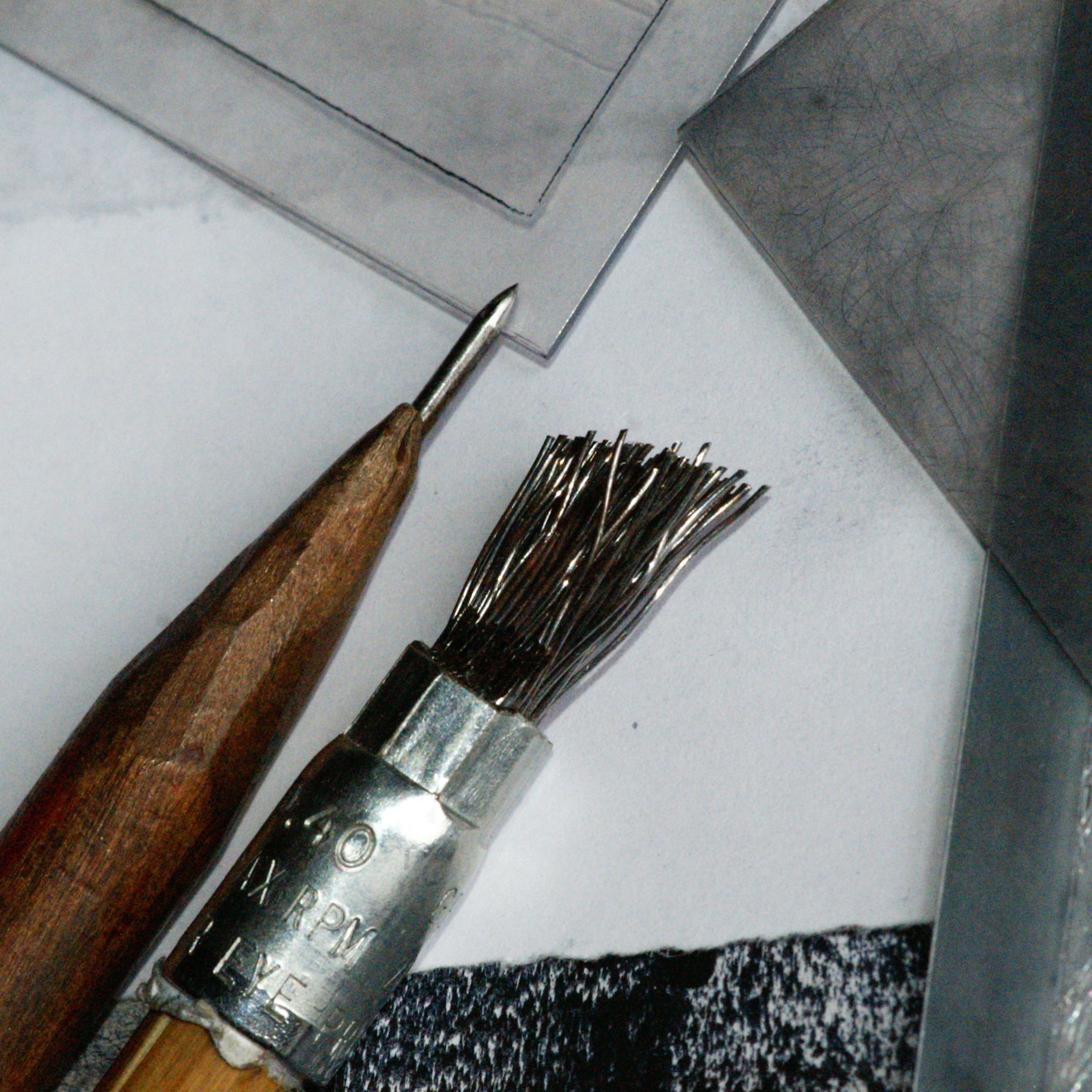

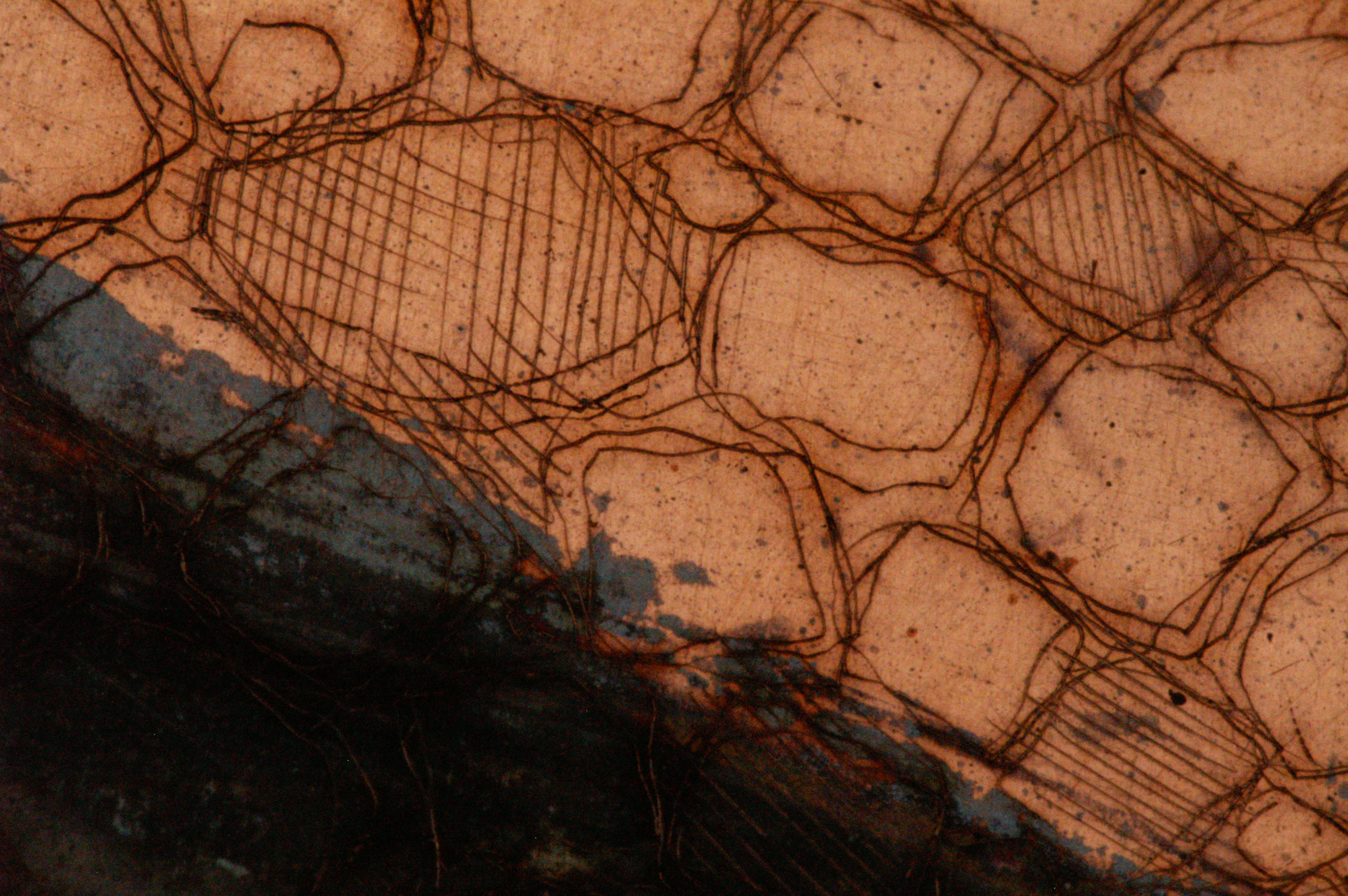

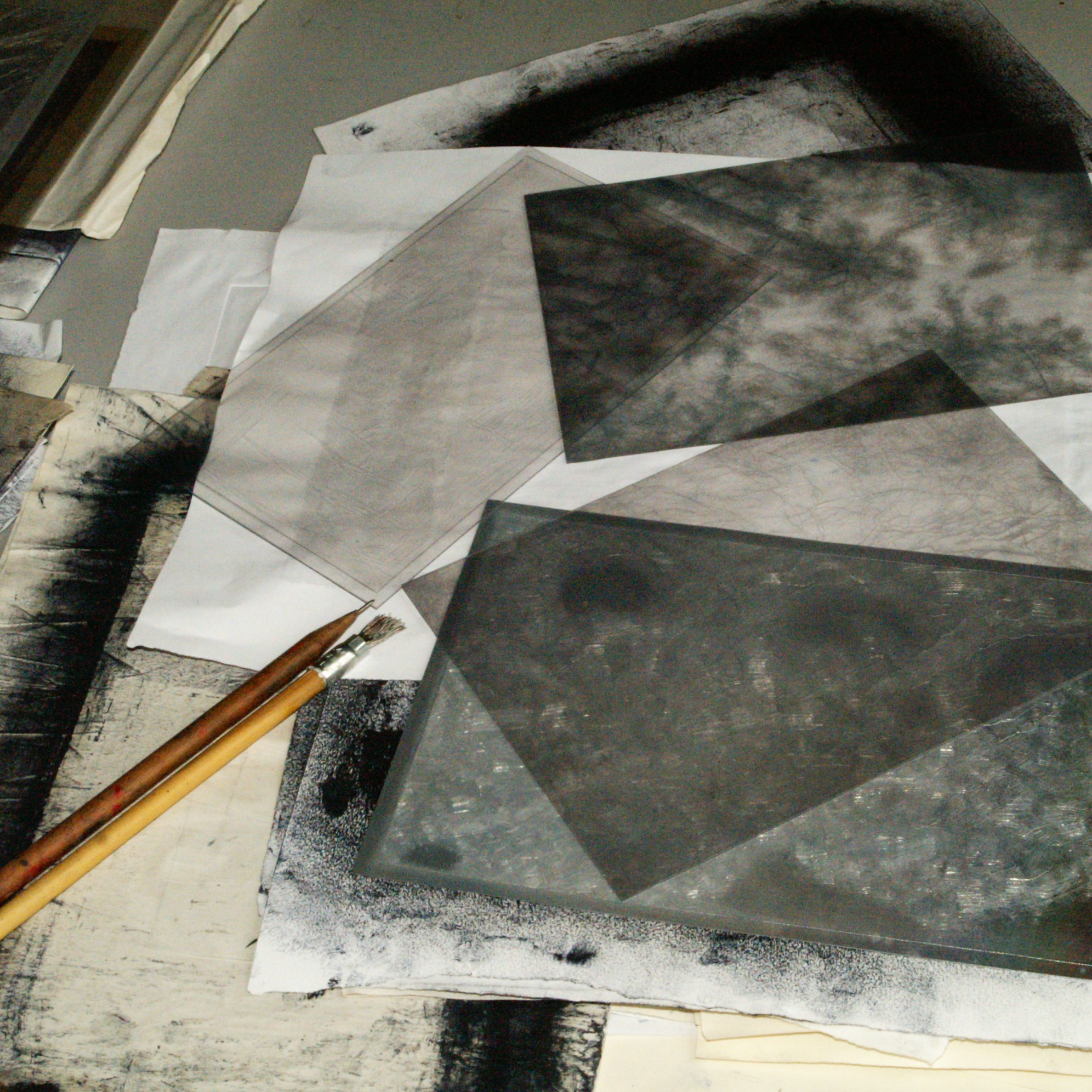

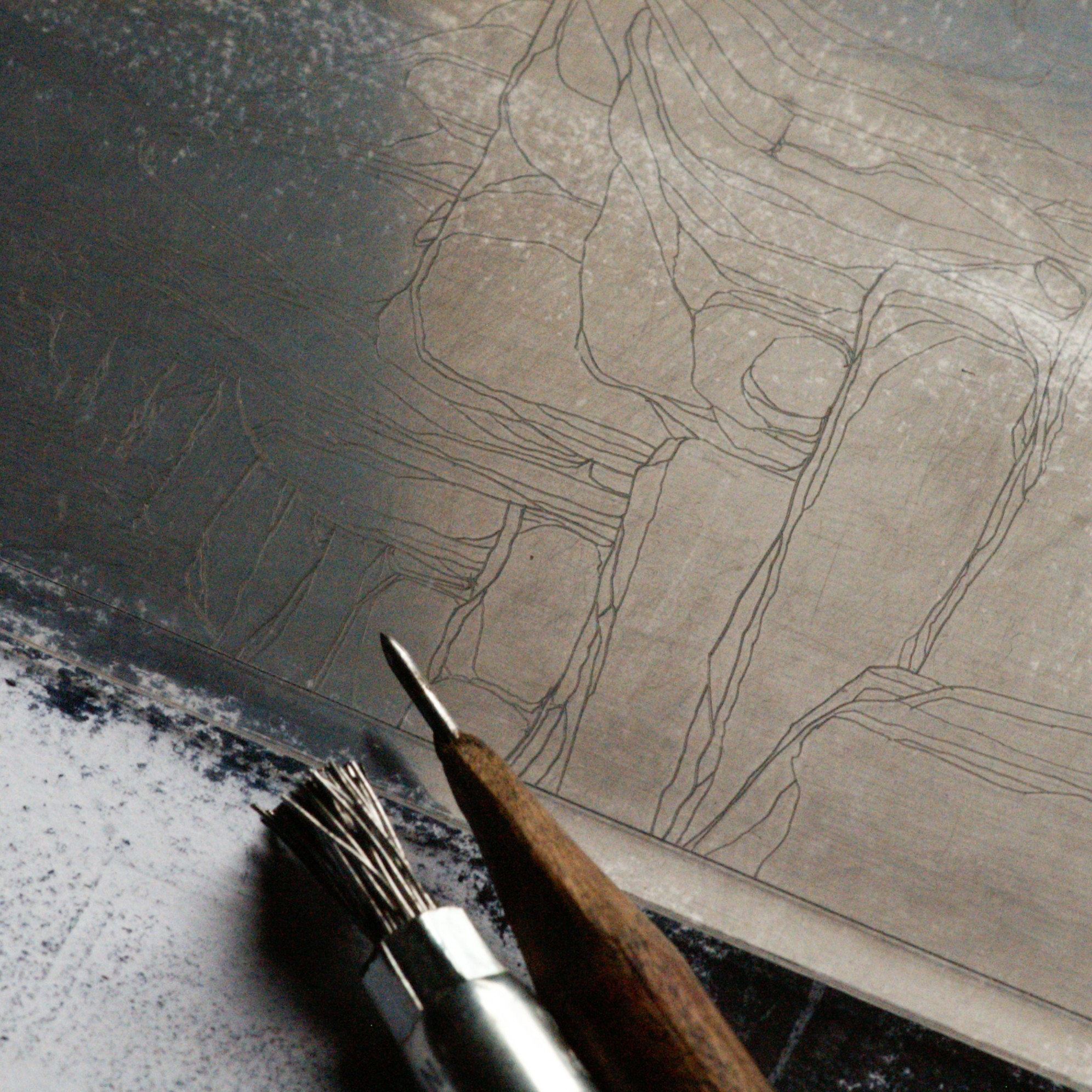

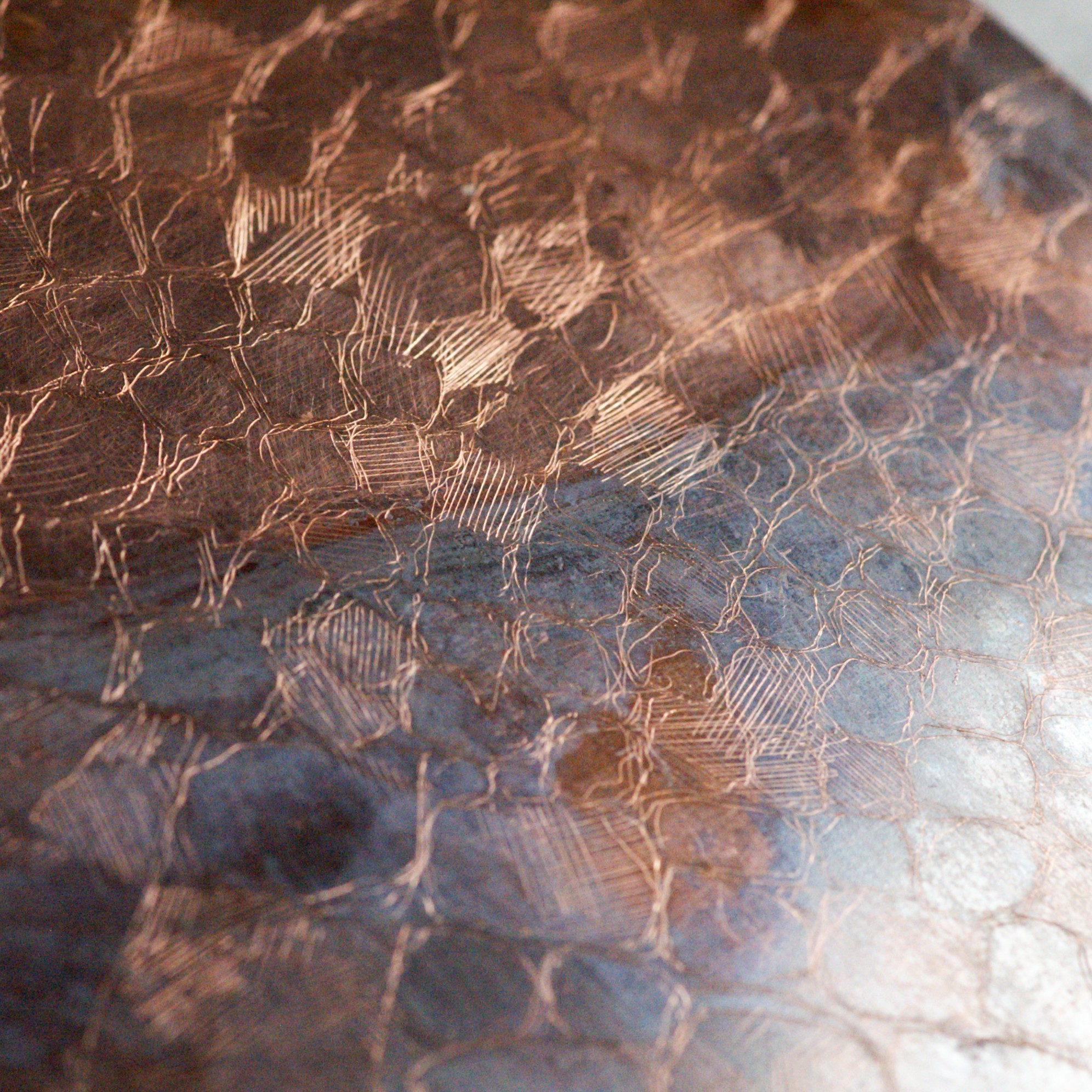

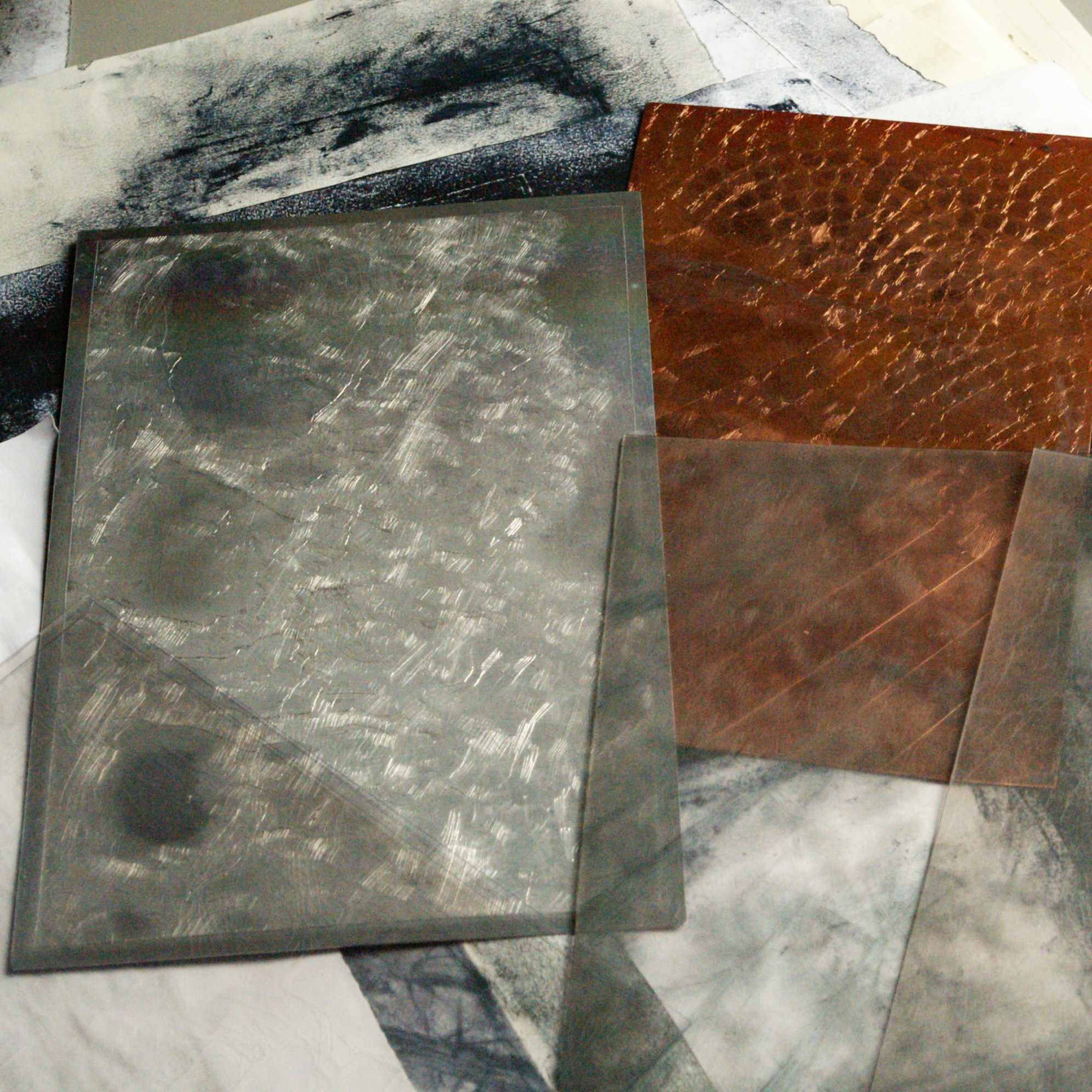

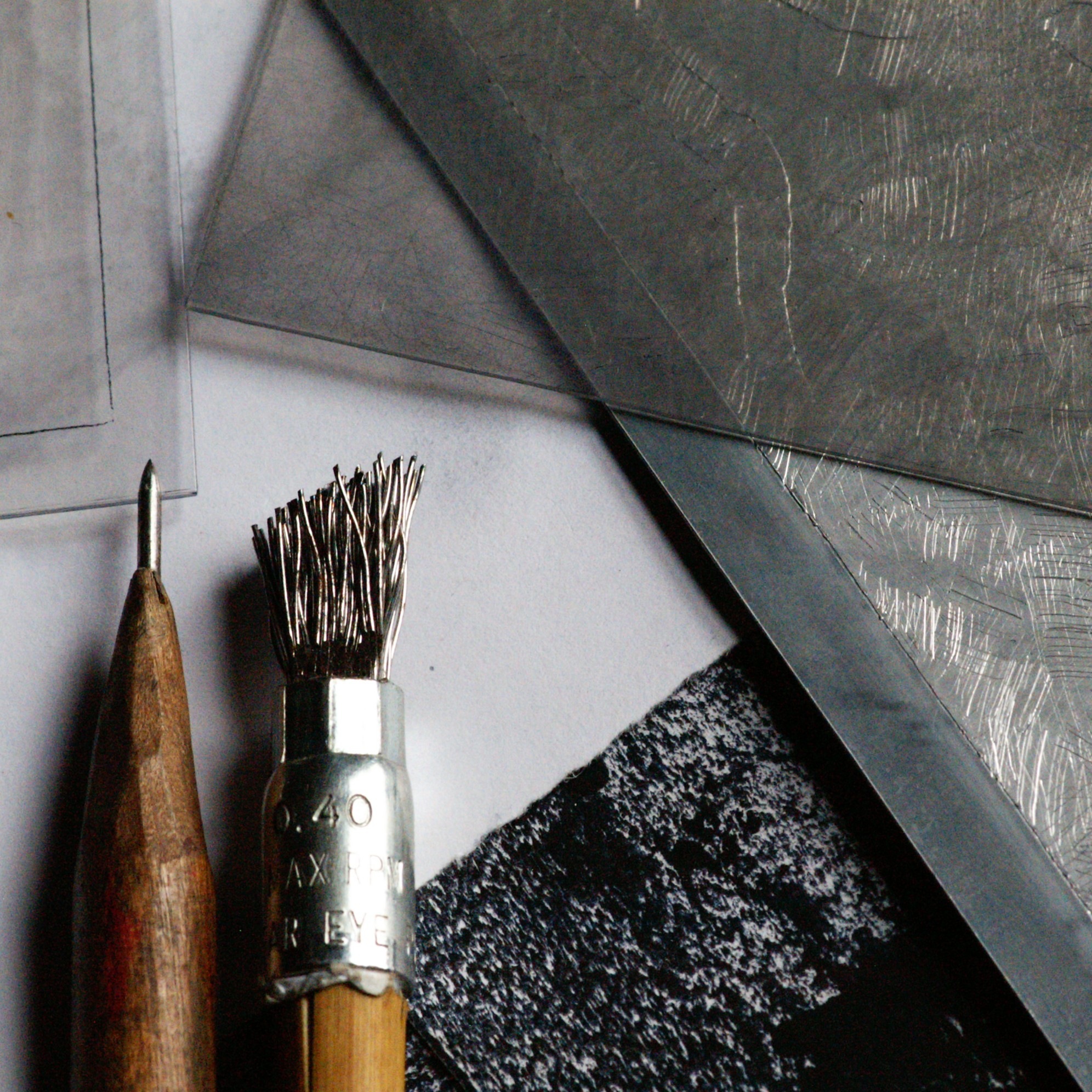

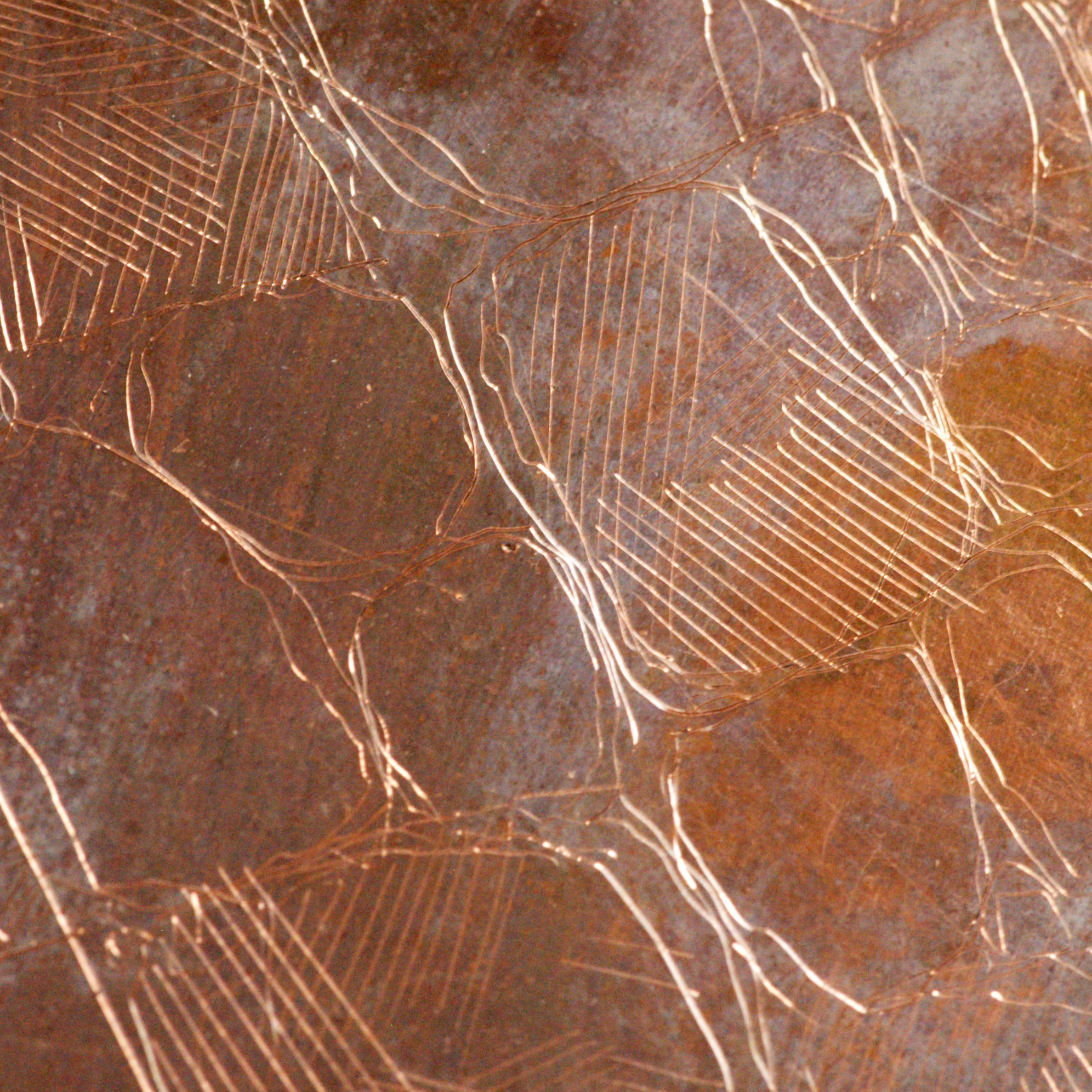

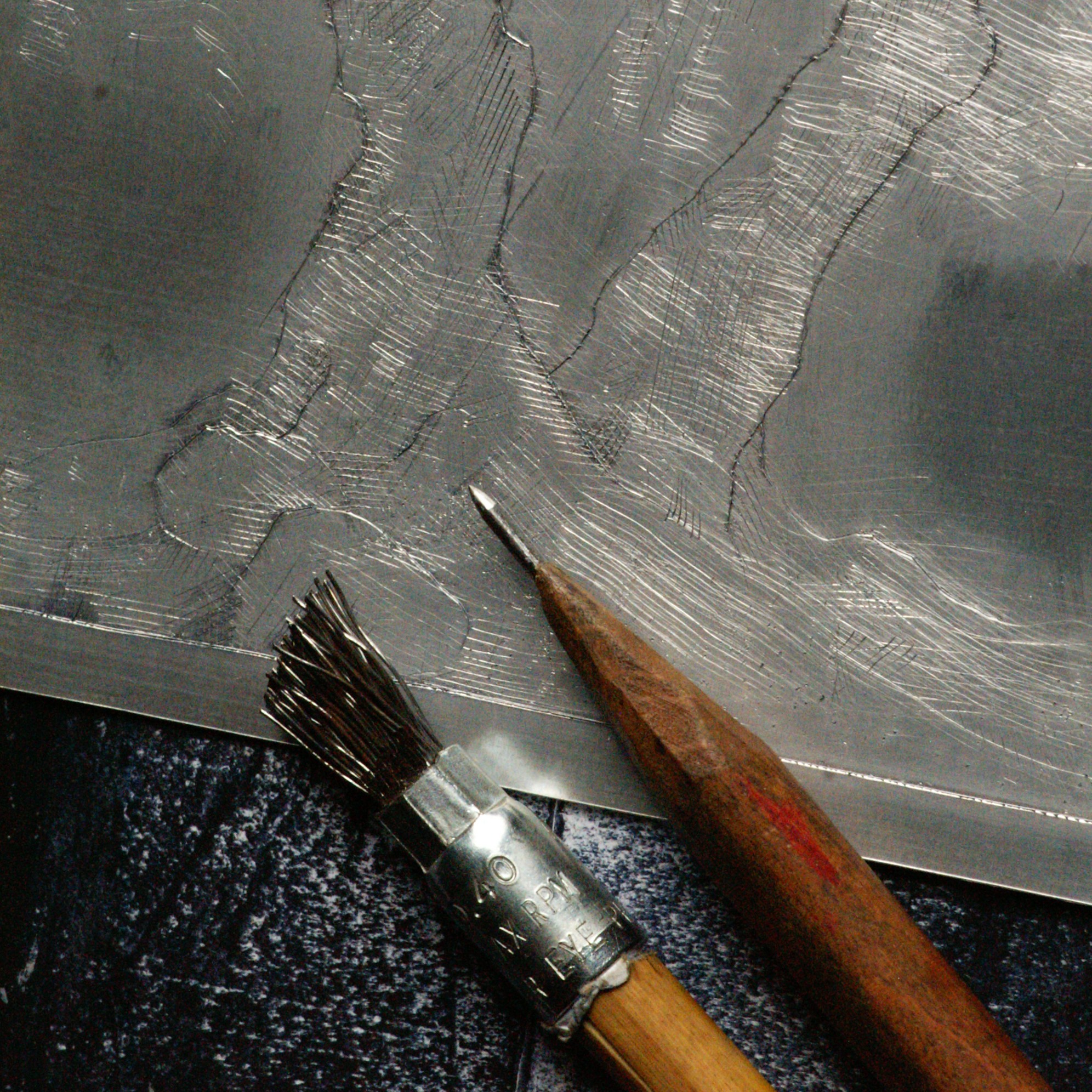

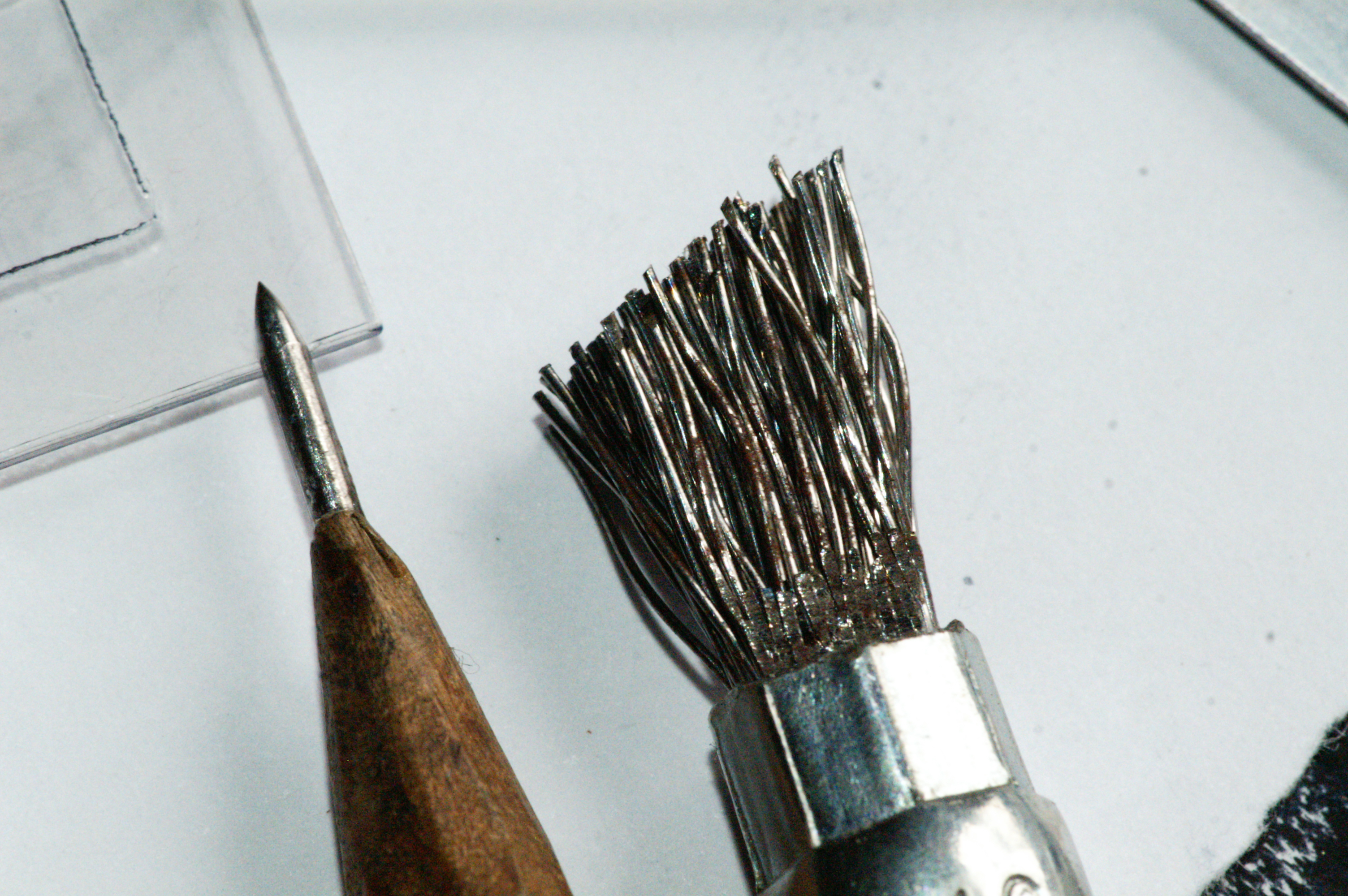

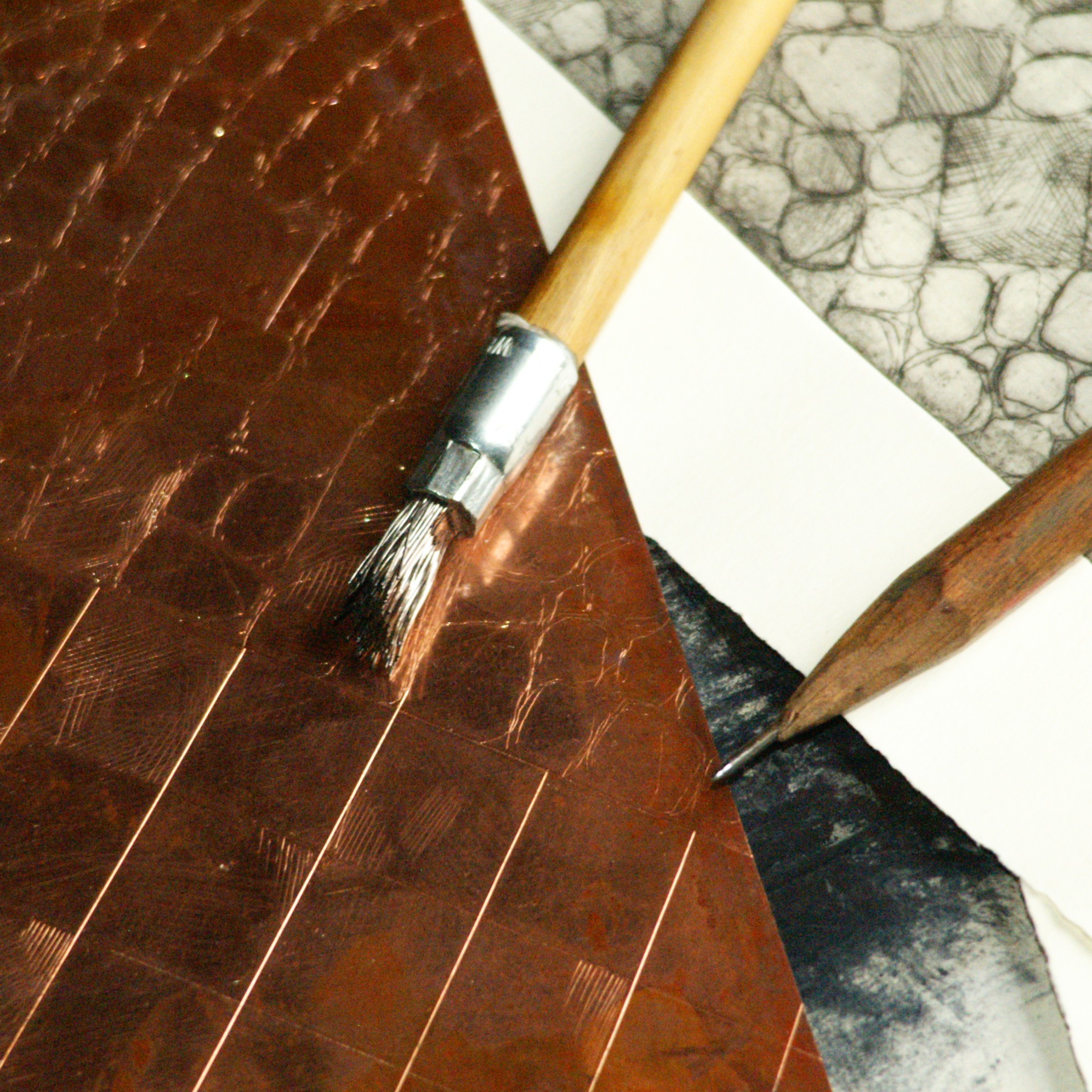

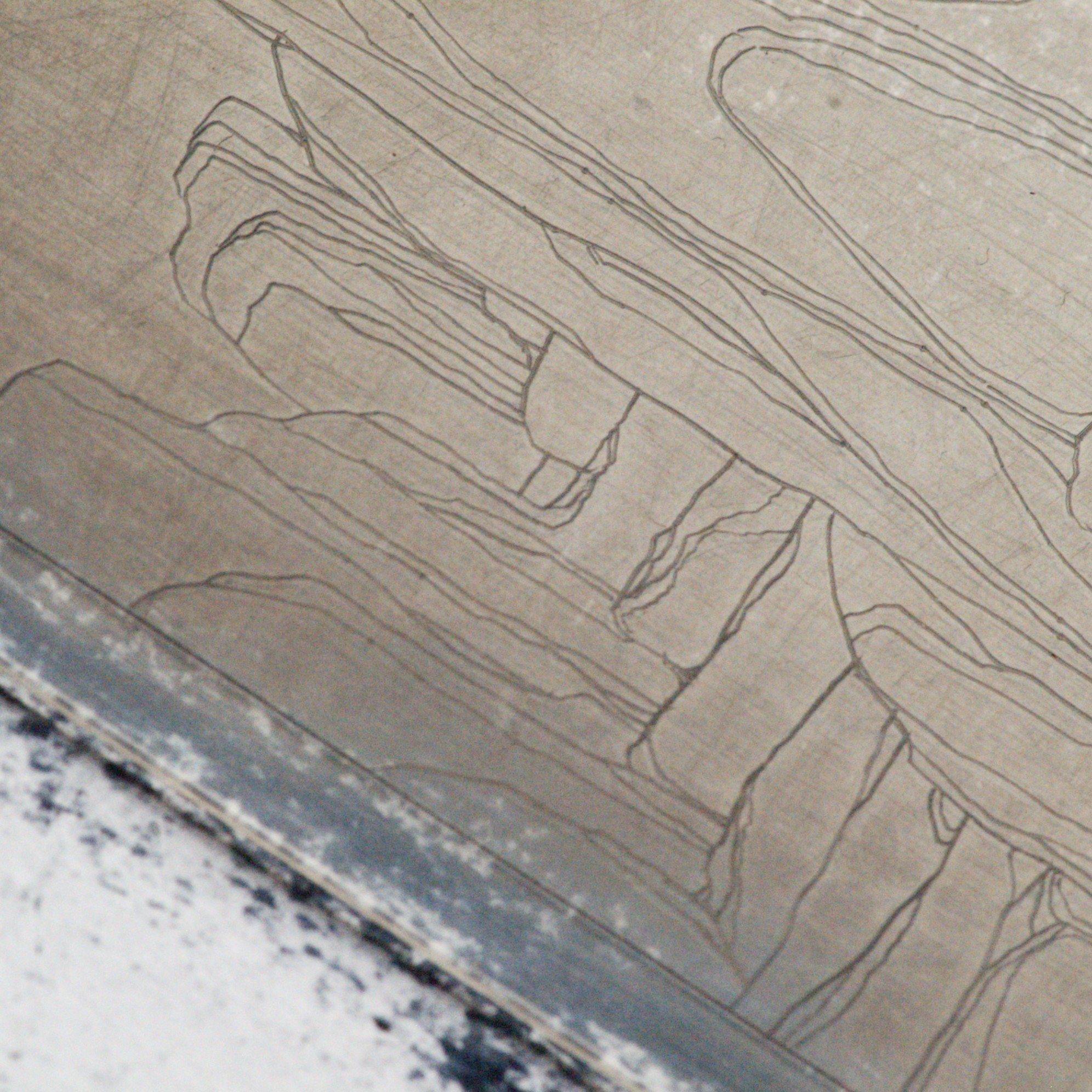

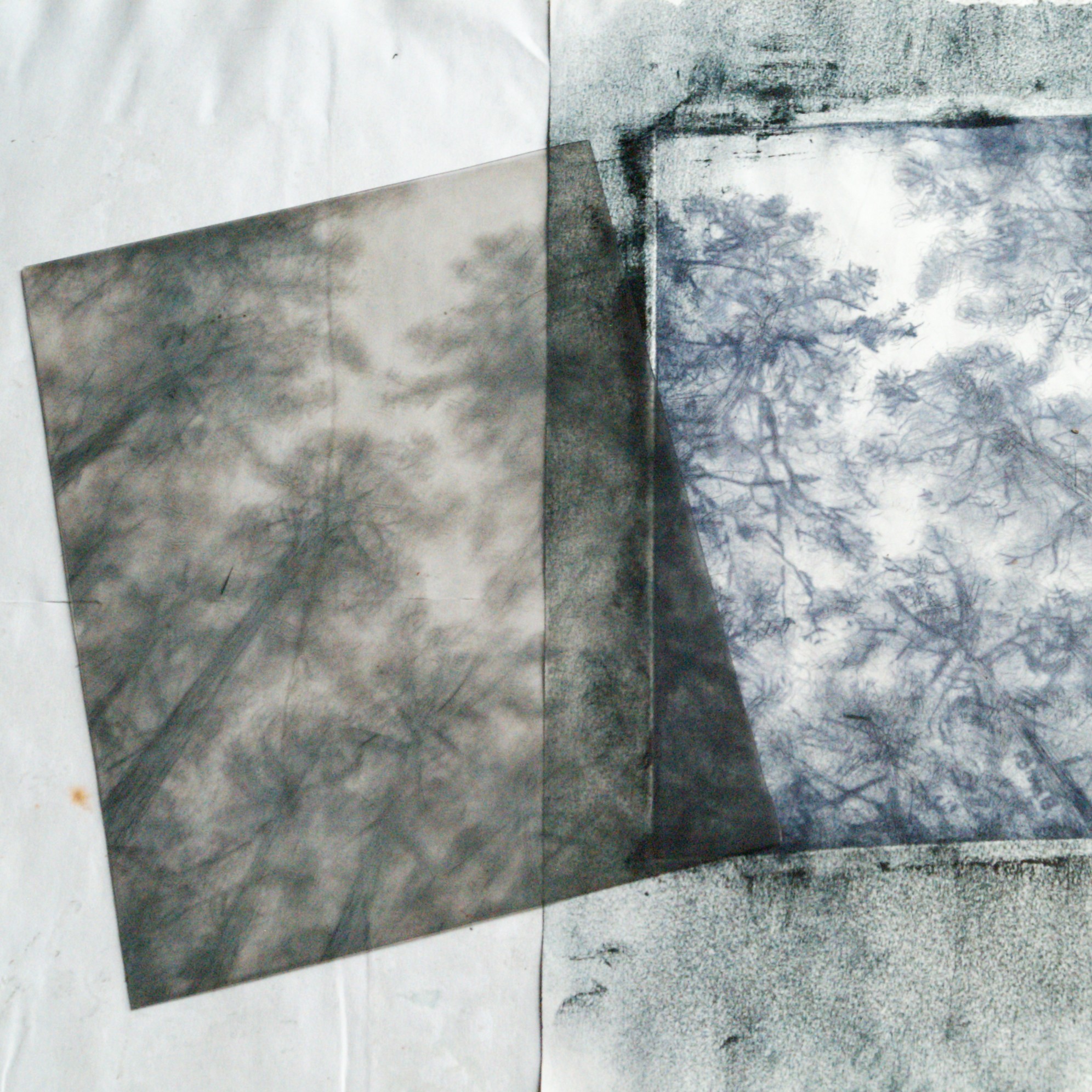

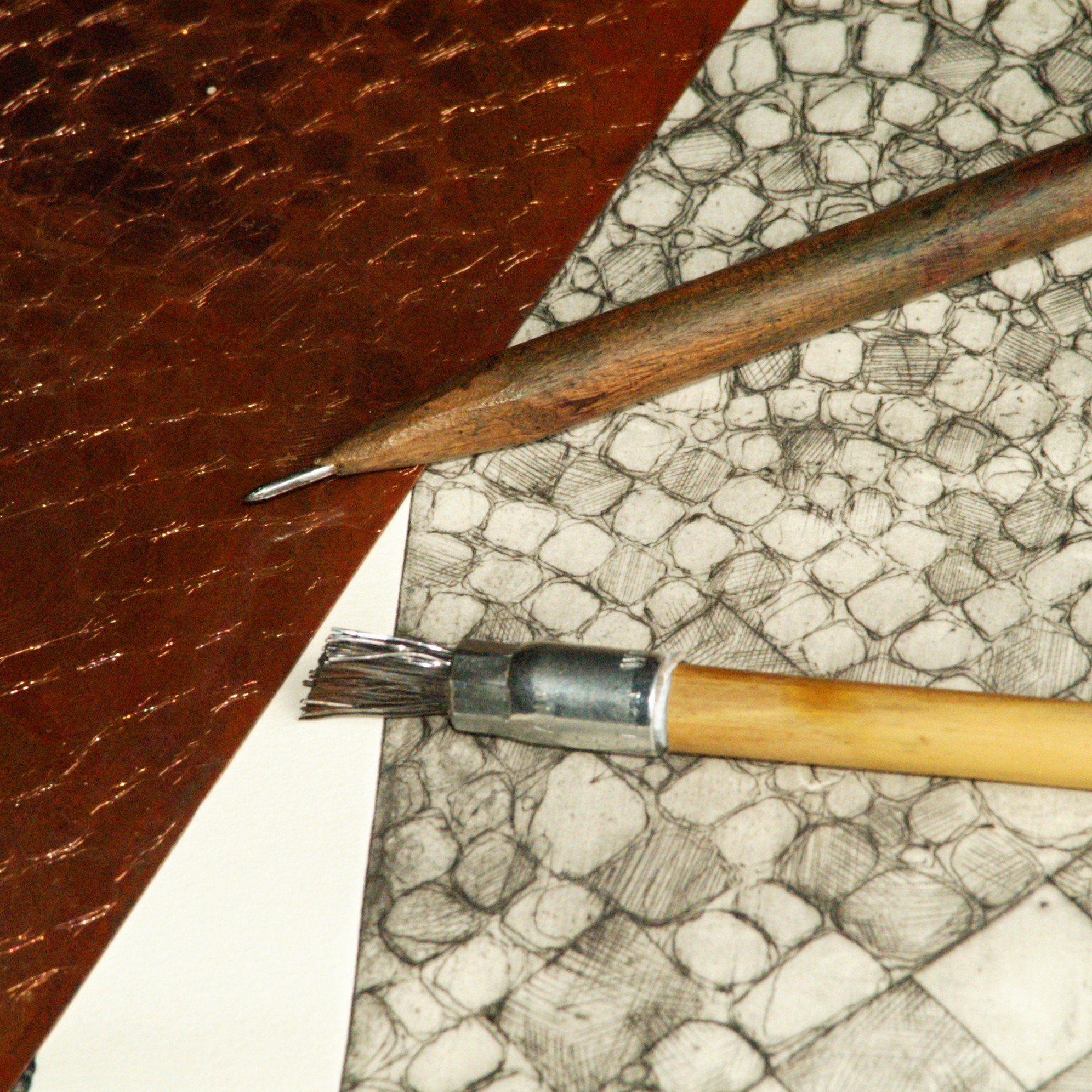

Technically Etching refers to acid engraving ( etch: to eat away, corrode. From German: aetzen – to corrode with acid, same root as in essen: to eat ) The metal plate is covered with a protective resin coating from which the image is scratched to give the acid access to the bare metal underneath to do the rest of the work. Then the resin is removed before printing.   But there is also Dry Point Etching or -Engraving , or simply Dry Point, where the etching needle is used directly to engrave the image into the blank plate (historically copper or zinc, in my case mostly acetate, i.e. plastic, or reused offset aluminium plates).

Etching, Dry Point, Aquatint and Mezzotint as a group make up Intaglio printing where the printing, ink bearing elements in a plate are engraved.   In Relief printing, covering wood block printing, woodcut, wood engraving, lino cut and traditional lead typesetting we have the opposite: prominent, raised printing elements, where non printing, blank parts of a desired image are cut away, engraved.   A long way from etching of any sort and entirely different is Lithography, utilising the heterogeneous qualities of oil for printing- and water for non printing elements side by side on the one flat surface (Offset printing today).

That much about the ambiguous terms: Print and Original.  An Etching is both.

copper new-036 copper-5

But don’t let this technical stuff interfere with the enjoyment of looking at the “prints”:
